CAT19-25 6-Wing Collar Removal Tool 1/4''

Price: $123.00

Part Number: CAT19-25

Manufacturer: Omega Technologies

Quantity:

Email this page to a friend

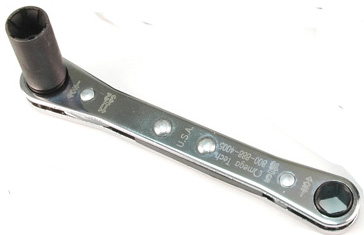

1/4'' Six-Wing® collar removal tool with ratchet and drive socket, straight handle, standard socket. When fitted into the flat box-ratchet handle, these sockets provide easy removal, while at the same time preventing re-installation or re-use of the removed collars. New collars must be used to insure proper torque.

The Six-Wing® frangible collar is recognizable by the six-faceted, semi-spline arrangement of wings around the collar base. These collars are used in high strength applications, typically on fighter aircraft. Special tapered spline sockets were developed to remove these collars.

6-Wing® Collar Removal Tool Technical Specifications:

Pin Size: -8

Overall Length: 4.25

Socket Height: 0.60

Socket Diameter: 0.54

Equivalent Part Numbers:

Hi-Shear® SWT15-25, SWT15-8

6-Wing Collar Removal Tools Omega Technologies Catalog Page: 16

6-Wing Collar Removal Tools Are Made In The USA Made In The USA
