RR40S-SP Reversible 1/4'' Square Drive Short Handle Roller Ratchet
|
Part Number: RR40S-SP
Manufacturer: Omega Technologies

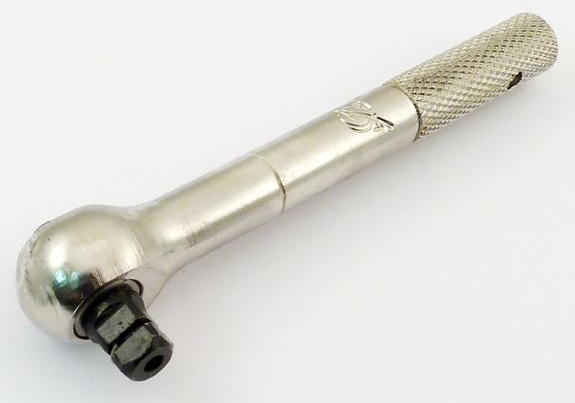

RR-40S-SP Our smallest 1/4'' Square Drive Roller Ratchet. Accepts all standard 1/4'' Sq Dr Sockets. Replaces RWB100-40, ZRDW80-250S, ATSK3539, ATSK3539B, and ATSK3539R. Reversible Spindle, 3.5'' OAL, .65'' Head Width, Short Handle, Zero Backlash Roller Ratchet Hi-Lok Installation Tool, 1/4'' Square Drive with Thru-Hole for Hex Key, 150 LB-IN Maximum Torque, 3" Handle.
Roller Ratchets from Omega Technologies were developed in response to the need for very small ratchet wrenches that could be used in extremely tight spaces where handle 'swing' was limited by obstructions, and the need to have a ratchet that would engage with very little handle movement.
The Roller Ratchet satisfies both of these requirements, and this modular tool is now widely used in the aerospace community worldwide.
|
|
Compact Roller Ratchet Allows access to restricted areas. Accepts standard 1/4'' Square Drive Sockets. Replaces RWB100-130. 7.2'' OAL, .92'' wide head, 1/4'' Square Drive with Thru-Hole for Hex Key. Related part number is RWB100-130.
|
Compact Roller Ratchet Allows access to restricted areas. Accepts standard 3/8'' Square Drive Sockets. Replaces RWB100-250.
|
Compact Roller Ratchet Allows access to restricted areas. Accepts standard 3/8'' Square Drive Sockets. Replaces RWB100-400. 8.7'' OAL, 1.3'' wide head, 3/8" Square Drive with Thru-Hole for Hex Key, Zero Backlash Roller Ratchet Hi-Lok Installation Tool.
|
Our most popular 1/4'' Square Drive Roller Ratchet. Fits all standard 1/4'' sockets. Replaces RWB100-40, ZRDW80-250, ATSK3539L, and ATSK3539BL.
|
Minimum Edge Distance, 200 lb-in, 1/4'' Square Drive Roller Ratchet, Replaces RWB100-80. 6.25'' OAL, .60'' Head Width, .30'' Edge Clearance, Zero Backlash Roller Ratchet Hi-Lok Installation Tool, 1/4'' Square Drive with Thru-Hole for Hex Key.
| |
|
