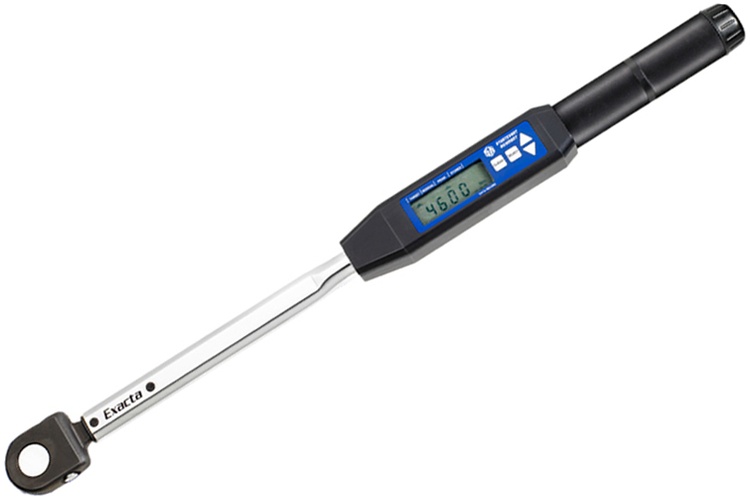

10533 Sturtevant Richmont Exacta 2 Digital Torque Wrench

Part Number: 10533
Brand: Sturtevant Richmont
Price: $1,558.95



Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart  |  Proceed to Checkout  |
10533 Exacta 2 Digital Sturtevant Richmont Torque Wrench
Sturtevant Richmont Exacta 2 Digital Torque Wrench Description

Bi-directional accuracy of +/- 1% to 100% of capacity in Track and Peak modes meets or exceeds requirements of ASME B 107.300-2010 and ISO 6789.

The Residual mode assists the user in determining retained Torque on a Joint. The accuracy percentage is contingent upon condition and user technique.

Programmable Limits and a Yellow/Green/Red illumination system guide you as you use the Wrench. The display and a raised lens on the back of the Wrench illuminate when each significant Torque value is reached. An LED provides a Yellow/Orange light as you approach the minimum specification. The light turns Green when you reach the minimum Torque, and remains green until you either stop pulling on the Wrench or the maximum Torque specification is attained. If you overtorque, it turns bright Red to let you know. Just pull to Green!

Audible prompts from a beeper supplement visual information.

Exacta® 2 comes with a serial cable for communication with a PC.

Simple front panel programming. Four keyswitches on the front of the Exacta® 2 electronics module permit programming and operation of all key functions.

999 memory locations can be accessed, reviewed, uploaded and printed - all from the front keypad!

Free Exawin software for programming Exacta® 2 from a PC.

Four of six models have the S/R Dovetail and can be used with S/R Interchangeable Heads.

The Exacta® 2 uses four (4) AA NiMH batteries of 2200 mAh capacity. These batteries (sold separately with 5-minute charger in NAFTA countries only) provide ample operating time between charges. Backup batteries (NAFTA countries only) are available with 2500 mAh capacity.

Comes with free ISO/IEC 17025 calibration certificate.

Wrenches calibrated for use with heads having 3 7/8'' Common Centerline.

Please note: Use only NiMH 1.25 volt rechargeable batteries in your wrench. Using 1.5 volt alkaline disposable batteries will damage your wrench, create inaccurate readings, and VOID your warranty.

Technical Specifications
Model: Exacta 2 - 250

Lever length: 21.0'' / 533mm

Overall length: 25.2'' / 640mm

Weight: 4.1 lbs. / 1.86 kg.

Description: 250 ft.lb, 338.9 Nm cap., 1/2'' Ratcheting Sq Dr.

Made In The USA





Omega Technologies Wobble Sockets


Products in the same category as the 10533 Sturtevant Richmont Exacta 2 Digital Torque Wrench

10530 Exacta 2 Digital Sturtevant Richmont Torque Wrench
10530 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Price: $1,463.50
10530 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Sturtevant Richmont Exacta® 2 Digital Series Torque Wrench. Model: Exacta 2 - 25 Lever Length: 12.5'' / 317mm Overall Length: 16.1'' / 409mm Weight: 2.8 lbs. / 1.27 kg. Description: 25 ft.lb, 33.8 Nm cap., 3/8'' SD Int Head inc.
10531 Exacta 2 Digital Sturtevant Richmont Torque Wrench
10531 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Price: $1,463.50
10531 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Sturtevant Richmont Exacta® 2 Digital Series Torque Wrench. Model: Exacta 2 - 75 Lever Length: 15.8'' / 401mm Overall Length: 19.4'' / 493mm Weight: 3.0 lbs. / 1.36 kg. Description: 75 ft.lb, 101.5 Nm cap., 3/8'' SD Int Head inc.
10532 Exacta 2 Digital Sturtevant Richmont Torque Wrench
10532 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Price: $1,495.32
10532 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Sturtevant Richmont Exacta® 2 Digital Series Torque Wrench. Model: Exacta 2 - 150 Lever Length: 17.8'' / 452mm Overall Length: 21.5'' / 546mm Weight: 3.1 lbs. / 1.40 kg. Description: 150 ft.lb, 203.3 Nm cap., 1/2'' SD Int Head inc.
10534 Exacta 2 Digital Sturtevant Richmont Torque Wrench
10534 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Price: $2,545.22
10534 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Sturtevant Richmont Exacta® 2 Digital Series Torque Wrench. Model: Exacta 2 - 600 Lever Length: 55.1'' / 1399mm Overall Length: 59.7'' / 1516mm Weight: 13.0 lbs. / 5.90 kg. Description: 600 ft. lbs., 813.4 Nm cap., 3/4'' Ratchetching Sq. Dr.
10535 Exacta 2 Digital Sturtevant Richmont Torque Wrench
10535 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Price: $2,227.07
10535 Sturtevant Richmont Exacta 2 Digital Torque Wrench
Sturtevant Richmont Exacta® 2 Digital Series Torque Wrench. Model: Exacta 2 - 400 Lever Length: 36.5'' / 927.1mm Overall Length: 35.9'' / 911.8mm Weight: 7.7 lbs. / 3.49 kg. Description: 400 ft.lb, 543 Nm cap., Dovetail**
