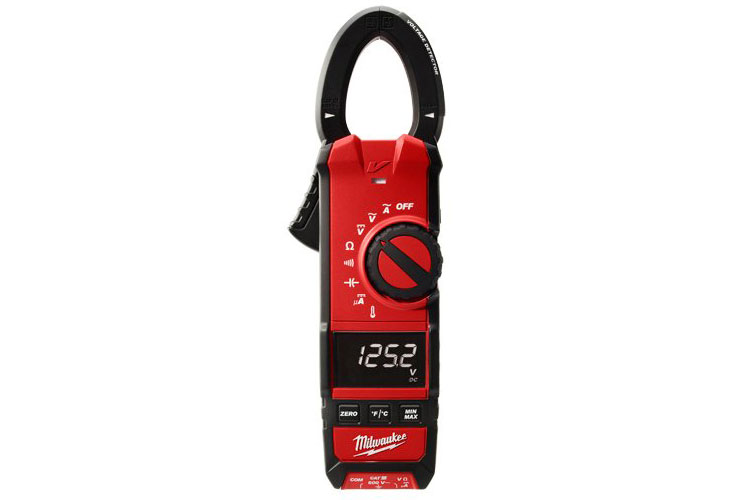

2236-20 Milwaukee Clamp Meter for HVAC/R

Part Number: 2236-20

Brand: Milwaukee Tools

Price: $197.40

Quantity:

Product sold in increments specified in the ‘Quantity’ box. This number does not reflect current available inventory.

View Shopping Cart | Proceed to Checkout |

Email Page To A Friend

2155-AC Milwaukee RADIUS LED 70w Temporary Site Light Description

2236-20 Milwaukee Clamp Meter for HVAC/R: Measures up to 600 amps AC, Large 1.30'' jaw opening, Thin Jaw Profile for easier wire measurement in panels or in bundles, Wide Voltage range to 600 AC/DC volts, True-RMS for accurate measurement in all applications, Built-In Voltage Detector and LED Work Light, Thermocouple (dual banana) input for contact temperature measurement, 600 uA DC for Flame Rectification, High Contrast, White on Black Display with Backlight for easy reading

2236-20 Milwaukee Clamp Meter for HVAC/R Includes

(1) Clamp Meter for HVAC/R(2236-20)
(1) Dual Banana Thermocouple
(1) Electrical Test Lead Set
(2) AA Batteries
(1) Manual

Technical Specifications

Part Number: 2236-20

Tool Warranty: 5 Years

Battery Type: Alkaline (AA)

Display Type: High Contrast White on Black

Length: 9 1/2''

Switch Type: Dial

TRMS: Yes

Jaw Size: 1.3''

Safety Rating: CAT III 600V

Current AC: 600A

Microamps DC: 600?A

Voltage AC DC: 600V

Resistance: 6 kω

Continuity: Yes

Capacitance: Yes

Contact Temperature: -40° F to 752° F (-40° C to 400° C)

Hold: Yes

Display Backlight: Yes

Non Contact Voltage: Yes

LED Work Light: Yes

Rugged Over molding: Yes

Temp: Yes

Dual Banana Thermocouple Input: Yes

Indication: Visual (for NCVD)

UPC: 45242173761
